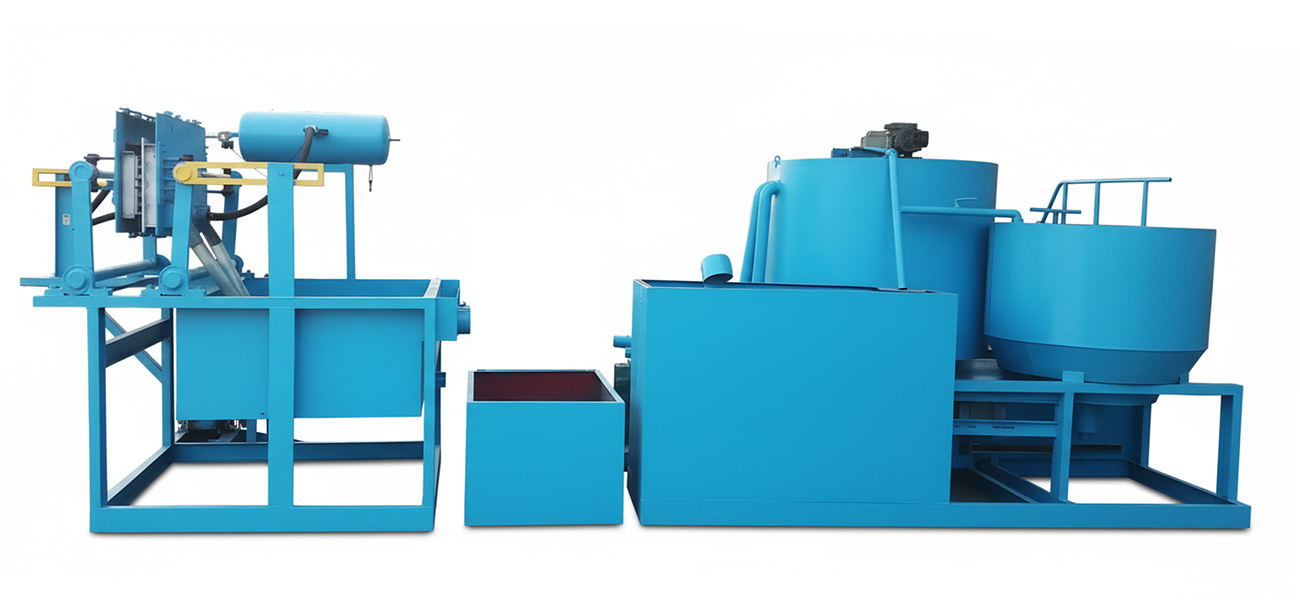

An Integrated Egg Tray Machine is a compact and fully integrated pulp molding system designed for producing paper egg trays efficiently. Unlike traditional egg tray production lines that require customers to build a separate pulp pool or civil foundation, this machine comes with a pre-installed metal pulp tank.
This design allows users to start production immediately after installation, greatly reducing installation time, construction costs, and labor requirements.
The integrated design makes this egg tray machine an ideal solution for small factories, startups, and new investors entering the molded pulp packaging industry.
Traditional egg tray machines usually require customers to construct a cement pulp pool before installation. This process often involves:
However, the Integrated Egg Tray Machine solves this problem by using a built-in metal pulp tank system.
With this design, the machine can be installed directly on the factory floor and put into operation quickly.
The Integrated Egg Tray Machine is designed as a ready-to-use egg tray production unit. All essential components are pre-installed and connected before delivery.
Main components include:
Once the machine arrives at the customer’s factory, it only needs simple connections such as power supply and water supply before starting production.
This significantly simplifies the installation process compared to conventional egg tray production lines.
Because of its compact and integrated design, the Integrated Egg Tray Machine is especially suitable for:
The machine helps reduce initial investment while maintaining stable production capacity.
The Integrated Egg Tray Machine can process a variety of waste paper materials, including:
These low-cost raw materials are converted into eco-friendly molded pulp egg trays, making the production process both profitable and environmentally sustainable.
This machine can produce different types of egg trays by changing molds, such as:
In addition to egg trays, it can also manufacture other molded pulp packaging products such as fruit trays and industrial packaging trays.
The Integrated Egg Tray Machine is designed for stable operation and high efficiency. With its optimized forming structure and reliable control system, the machine ensures consistent tray quality and smooth production.
Key features include:
This makes it an excellent choice for long-term egg tray manufacturing.
| Model | XY0301 | XY0401 | XY0403 | XY0404 | XY0408 | XY0508 | XY0608 | |
| Capacity (pieces/h) | 800-1000 | 1200-1500 | 2000 | 2200-2500 | 3500-4500 | 5000-5500 | 6000-6500 | |
| Forming Mould Quantity | 3 | 4 | 12 | 16 | 32 | 40 | 48 | |
| Total Power (kw) | 33 | 42 | 53.7 | 82 | 127 | 161 | 223 | |
| Electricity Consumption (kw/h) | 23.1 | 29.4 | 37.59 | 57.4 | 89 | 113 | 156 | |
| Labor Force | 3-5 | 4-6 | 4-6 | 4-6 | 4-6 | 5-7 | 6-8 | |
| Material Consumption (kg/h) | Paper | 85 | 102 | 170 | 212 | 298 | 425 | 520 |
| Water | 255 | 306 | 510 | 636 | 1147 | 1275 | 1560 | |
| Fuel Consumption | Coal (kg) | 50 | 60 | 83 | 104 | 125 | 208 | 208 |
| Natural Gas (m3) | 22-32 | 26-36 | 37-47 | 46-56 | 56-66 | 92-103 | 92-103 | |
| Diesel (kg) | 18-28 | 22-32 | 30-40 | 38-48 | 46-56 | 77-87 | 77-87 | |
